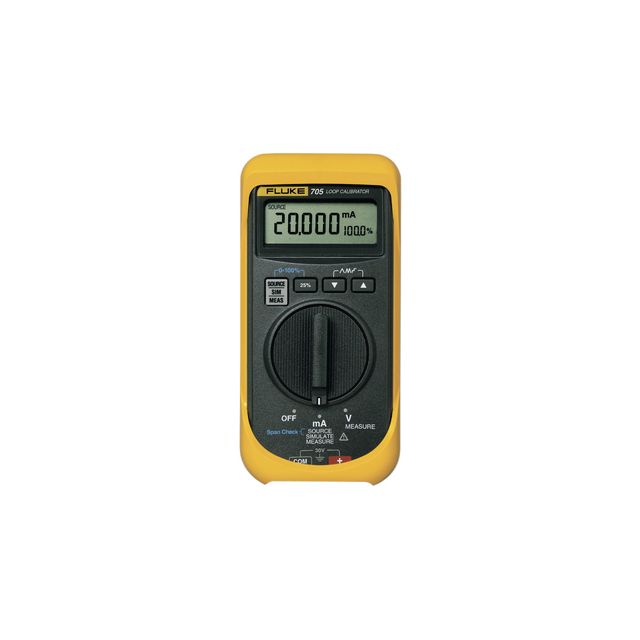

Fluke 705 luskalibrator
- Fluke 705 Loop calibrator bevat: AC70A krokodillen- klemmen, C10 beschermhoes, Instructieblad, TL75 testsnoeren en NIST-traceable calibratie rapport en data.
| Referentie | FLUKE-705 |
|---|---|
| EAN code | 0095969062565 |
| Merk | FLUKE |
| Zolang de voorraad strekt | Nee |
Fluke 705 loop calibrator provides a cost-effective, integrated solution for calibrating milliamp loops
The Fluke 705 is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops. It features a large display and simple, pushbutton interface for ease of use. Plus, it offers the other capabilities you need most to calibrate mA loops including:
- mA sourcing, simulation and measurement
- 0.02% accuracy and 0.001 mA resolution
- Simultaneous mA and % of span display
- Selectable step or ramp outputs
- 24 V Loop supply with mA measure
- 0-28 VDC measurement to check Loop Voltage
- Easy battery exchange without opening the case
- Includes “span check” for fast confirmation of zero and span.
- Provides selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
- Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM.
- Runs on a single 9 V battery that is easily changed without breaking the calibration seal
- Offers 0 - 20 mA or 4 - 20 mA default start up modes
- Comes with a protective yellow holster with test lead storage and a three year warranty
And you get all of that in a compact case with a separate protective holster and a three year warranty.
| Specifications | ||
| Current measurement | Range | 0 to 24 mA |
| Resolution | 0.001 mA | |
| Accuracy | 0.02% Rdg + 2 LSD | |
| Current sourcing | Range | 0 to 20 mA or 4 to 20 mA |
| Accuracy | 0.025% Rdg + 2 LSD | |
| Drive capability | 1000 Ω @ 24 mA | |
| Current simulation | Range | 0 to 20 mA or 4 to 20 mA |
| Accuracy | 0.025% Rdg + 2 LSD | |
| Ext. loop voltage requirement | 12-30 V | |
| Loop power | While measuring mA, 24 V | |
| Voltage measurement | Range | 0 to 28 V DC |
| Resolution | 1 mV | |
| Accuracy | 0.025% Rdg + 2 LSD | |
| Environmental Specifications | ||
| Operating temperature | -10°C to 55°C | |
| Storage temperature | -40°C to 60°C | |
| Humidity (without condensation) | 0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C) | |
| Temperature coefficient | -10°C to 18°C, 28°C to 55°C, ±.005% of range per°C | |
| Safety Specifications | ||
| Safety | CSA C22.2 No. 1010.1:1992 | |
| EMC | EN50082-1:1992 and EN55022:1994 Class B | |
| Maximum voltage | 30 V | |
| Mechanical and General Specifications | ||
| Size | 152 x 70 x 41 mm | |
| Weight | 340 g | |
| Batteries | One 9 V battery | |
| Warranty | Three years | |
| Shock and vibration | per MIL-T-28800 for a Class 2 Instrument | |
| Display current and % of span | Yes | |
| Auto step, auto ramp | Yes | |
| Span check | Yes | |
