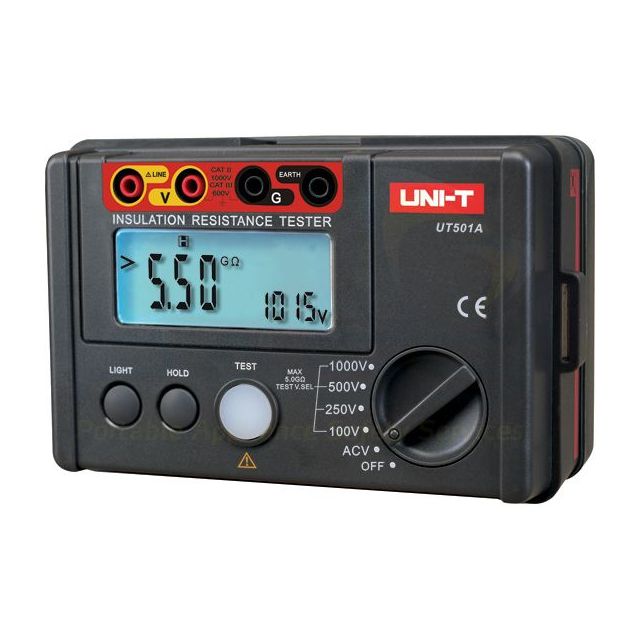

Isolatietester. UT501A
- Testspanning: 250V/ 500V/ 1000V
- Nominale stroom: 1mA
- Kortsluitstroom: < 2mA
- Isolatieweerstandsmeting:
- 250V/500V: 3Mohm - 2000Mohm
- 1000V: 3Mohm - 2Gohm
- Voltage meting: 1000VDC / 750 VAC
- Autorange
- Lage batterij indicatie
- Backlight
- Zoemer
- 6 x 1,5V batterij
- Instrument voor het uitvoeren van algemene isolatietests.
| Referentie | UT501A |
|---|---|
| EAN code | 02089283496845 |
| Merk | UNI-T |
| Merk | UNI-T |
| Data sheet | UT501AH.pdf |
| Handleiding | UT501_NL_handleiding.pdf |
| Zolang de voorraad strekt | Nee |
|
Specifications |
Range |
Accuracy |
|
|
Model |
　 |
UT501A |
|
|
Insulation Resistance (Ω) |
Test Voltage |
100V/250V/500V/1000V |
0%~10% |
|
100V |
0.00MΩ~100MΩ |
±(3%+5) |
|
|
250V |
0.00MΩ~99.9MΩ |
±(3%+5) |
|
|
100MΩ~5.5GΩ |
±(5%+5) |
||
|
500V |
0.00MΩ~99.9MΩ |
±(3%+5) |
|
|
100MΩ~5.5GΩ |
±(5%+5) |
||
|
1000V |
0.00MΩ~99.9MΩ |
±(3%+5) |
|
|
100MΩ~5.5GΩ |
±(5%+5) |
||
|
Load Current |
50V(R=50KΩ) 1mA |
0%~10% |
|
|
100V(R=100KΩ) 1mA |
0%~10% |
||
|
250V(R=250KΩ) 1mA |
0%~10% |
||
|
500V(R=500KΩ) 1mA |
0%~10% |
||
|
1000V(R=1MΩ) 1mA |
0%~10% |
||
|
Short Circuit Current |
　 |
<2mA |
|
|
　AC Voltage (V) |
30V~750V |
±(2%+3) |
|
|
Features |
|||
|
Display Count |
　 |
1999 |
|
|
Auto Range |
　 |
√ |
|
|
Low Battery Indication |
　 |
√ |
|
|
LCD Backlight |
　 |
√ |
|
|
Alarm Indication |
　 |
√ |
|
|
Alarm Buzzer |
　 |
√ |
|
|
High Voltage Indication |
　 |
√ |
|
|
Overload Indication |
　 |
√ |
|
|
Auto Discharge |
　 |
√ |
|
|
Test Voltage Vice Display |
　 |
√ |
|
|
10MΩ Internal Resistance Test |
　 |
√ |
|
|
General Characteristics |
|||
|
Power |
1.5V Alkaline Batteries (5#) x 6 |
||
|
LCD Size |
70.6mm x 34mm |
||
|
Product Color |
Red and Grey |
||
|
Product Weight |
500g |
||
|
Product Size |
150mm x 100mm x 71mm |
||
|
Standard Accessories |
Test Lead, Probe, Alligator Clip, Batteries, Carrying Bag, Gallus |
||
|
Standard Individual Packing |
Gift Box, User Manual, Warranty Card |
||
|
Standard Quantity Per Carton |
20pcs |
||
|
Standard Carton Measurement |
500mm × 380mm × 330mm |
||
|
Standard Carton Gross Weight |
10.5kg |
||
