Soil temperature / Moisture Sensor SHT20

Referentie
SEN0227
€ 25,91 € 21,41
1 in voorraad
Meer informatie
Meer informatie
Referentie SEN0227
Extra

Merk ADAFRUIT
Zolang de voorraad strekt Nee
Technische specificaties

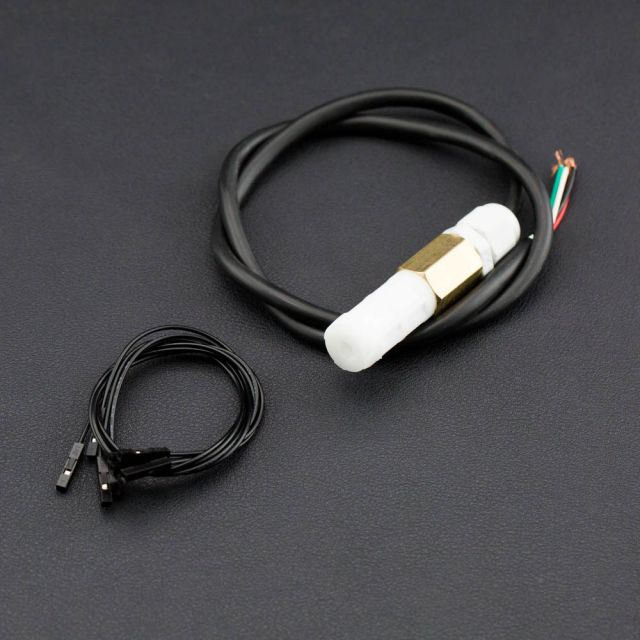

This SHT20 I2C temperature & humidity sensor is equipped with waterproof probe. It comes with the 4C CMOSens® SHT20 temperature & humidity sensor chip and the probe has gone through dual waterproof protection test.
The SHT20 I2C temperature & humidity sensor adopt Sensirion techniques. Except the humidity sensor of capacitive type and the temperature sensor of band gap , SHT20 contains an amplifier, A/D converter, OTP memory and a digital processing unit. Compared with early SHT1x series and SHT7x series, SHT20 shows a strong reliability and long-term stability. It can measure surrounding environment temperature and relative air humidity precisely.
There is also a built-in 10k Pull-up resistor and 0.1uf filter capacitor. It enables the sensor to be directly used with the microcontroller such as Arduino.

Sensor Interface:
  • Red VCC
  • Green GND
  • Blue (Black) SDA
  • Yellow (White) SCL
  • Operating Voltage: 3.3/5V
  • Communication Interface: I2C
  • Protection Class: waterproof anti-condensation
  • RH Response Time: 8s (tau63%)
  • Accuracy: ±3% RH / ±0.3 ℃
  • Measuring Range: 0-100% RH / -40-125 ℃
  • Dimension: 73mm * 17mm / 2.87 * 0.67 inches
  • Weight: 44g
