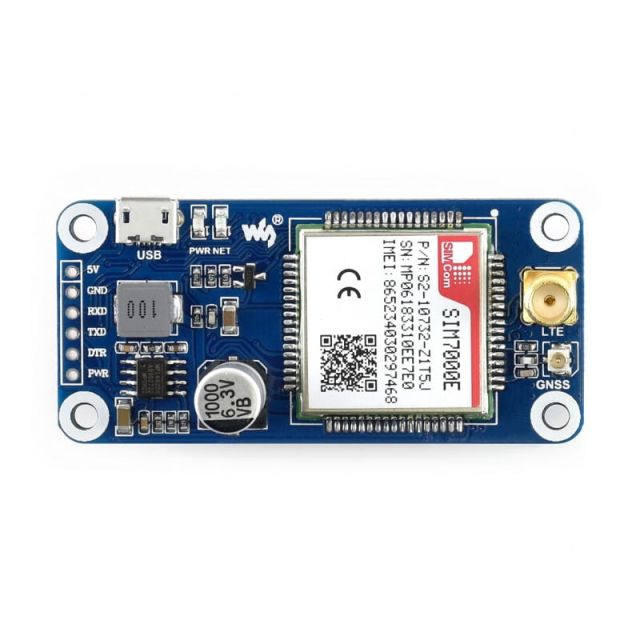

Waveshare SIM7000E NB-IoT HAT expansion board
Referentie
WS14865
Details
- NB-IoT / EMTC / EDGE / GPRS / GNSS HAT voor Raspberry
- Voor Europa, Africa, Australiƫ en Zuid-Oost Azie.
- Bestaat uit: SIM7000E NB-ioT HAT, GSM Antenne, GPS externe antenne, USB type A naar micro USB kabel en 2 schroeven voor bevestiging op RPI
Meer informatie
| Referentie | WS14865 |
|---|---|
| Zolang de voorraad strekt | Nee |
Technische specificaties
- Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
- Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
- Supports GNSS positioning (GPS,GLONASS,BeiDou and Galileo)
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Breakout UART control pins, to connect with host boards like Arduino/STM32
- Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor
- SIM card slot, compatible with both normal SIM card and NB-IoT specific card
- 2x LED indicators, easy to monitor the working status
- Baudrate: 300bps~3686400bps
- Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Communications Specifications
| ć | NB-IOT | EMTC | EDGE | GSM/GPRS |
|---|---|---|---|---|
| Band | SIM7000E: FDD-LTE B3/B8/B20/B28 | GPRS/EDGE 900/1800 MHz | ||
| SIM7000C: FDD-LTE B1/B3/B5/B8 | ||||
| Power saving | Current in sleep mode: 1.2mA (@DRX=2.56s). Current in PSM mode: 9uA. | |||
| Emitting power | Class 3 (0.25W@LTE) | Class E2 (0.5W@EGSM900) Class E1 (0.4W@DCS1800) |
Class 4 (2W@GSM900) Class 1 (1W@DCS1800) |
|
| Data Speed | Uplink≤66kbps Downlink≤34kbps |
Uplink≤375kbps Downlink≤300kbps |
Uplink≤236.8kbps Downlink≤236.8kbps |
Uplink≤85.6kbps Downlink≤85.6kbps |
| SIM Card | NB Specific (Not Included) | Normal SIM (Not Included) | ||
GNSS Specifications
- Receiver type
- 16-channel
- C/A code
- Sensitivity
- Tracking: -162 dBm (GPS)/-157 dBm (GLONASS)/TBD (BD)
- Cold starts: -148 dBm
- Time-To-First-Fix
- Cold starts: <35s
- Hot starts: <1s
- Accuracy
- Position: <2.5m CEP
Other Specifications
- Power supply: 5V
- Operating voltage: 5V/3.3V (3.3V by default)
- Sleep Mode current: 1.2mA(@DRX=2.56s)
- Power Save Mode current: 9uA
- Operating temperature: -40°C ~ 85°C
- Storage temperature: -45°C ~ 90°C
- Dimension: 30.2mm x 65mm
