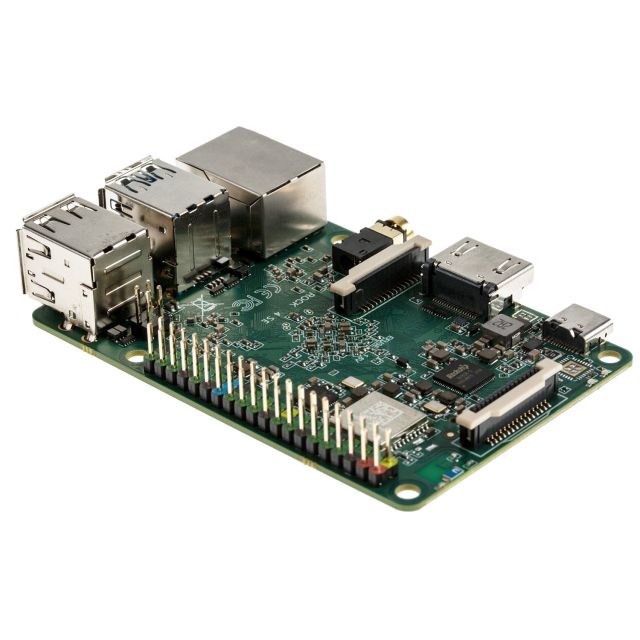

OKdo x Radxa ROCK 4 Model SE - 4GB single board computer - Rockchip RK3399-T ARM cortex A72 - 5GTF4
- Een robuuste single board computer
- Rockchip RK3399-T processor
- 4GB versie
- Onboard RTC, WiFi, Bluetooth, Antenna, Audio Jack, 4K HDMI poort
| Referentie | ROCK4SE |
|---|---|
| EAN code | 6975225650054 |
| Merk | OKDO |
| Data sheet | rock4SE.pdf |
| Zolang de voorraad strekt | Nee |
Description
ROCK 4 SE is a reliable and high-performing single-board computer that offers class-leading performance and superior hardware as standard. This special edition board is based on a powerful Rockchip RK3399-T hexa-core processor, big.LITTLE™ Arm® Dual Cortex-A72® CPU, Arm Mali™ – T860MP4 GPU and 4GB 64bit LPDDR4 RAM. With onboard RTC, WiFi, Bluetooth, antenna, audio jack, 4K HDMI port, and many more, ROCK 4 SE is the perfect Raspberry Pi alternative, that provides an incredible performance solid as a ROCK!
Details
Note: We recommend using a PD or QC power supply with a maximum output of 9V or 12V.
What Are the Key Benefits of the ROCK 4 SE?
Powerful Rockchip processor
A low-power high-performing Rockchip RK3399-T processor is embedded into the heart of the ROCK 4 SE board. Equipped with an Arm® big.LITTLE™ technology Dual Cortex®-A72@1.5GHz, Quad Cortex-A53@1.0GHz CPU, Arm Mali™ – T860MP4 GPU and 4GB 64bit LPDDR4 RAM, be sure that your board will provide a high-performance solid as a ROCK!
Extensive storage capacity
ROCK 4 SE offers you an immense advantage over other competitors’ boards, benefiting from extensive storage capability. It features a Micro SD card, an eMMC and an M.2 (M key), ensuring the board with a tremendous amount of additional storage capacity.
RTC (real-time clock)āÆ
The onboard real-time clock allows you to accurately register the time even when the ROCK 4 SE is powered off. The board features an onboard connector for an RTC battery.
Multiple connectivity capabilities
The board offers you multiple connectivity capabilities, including Bluetooth 5.0, WiFi, Gigabit Ethernet, USB and HDMI ports, and a built-in antenna, allowing you to widely incorporate ROCK 4 SE into your applications.āÆ
Highly compatible with SBC accessories
ROCK 4 SE features an onboard 40P GPIO extension header, offering extensive compatibility with a wide range of SBC accessories.
Advanced multimedia functions
The ROCK 4 SE is fitted with an Arm Mali™ – T860MP4 quad-core graphics processing unit (GPU), ideal for advanced multimedia applications, including games. The board incorporates camera and display interfaces, an HDMI port supporting displays up to 4Kp60 resolution, a high-quality audio output via a 3.5mm onboard audio jack that supports microphone input as default, and much more.
Why is ROCK 4 SE the perfect Raspberry Pi alternative?
- Better performance – 4GB 64bit RAM, more processing cores and a broader memory interface,
- Extensive storage capacity,
- Similar form factor,
- 40 pin GPIO extension header.
Availability
Tackling the shortage of semiconductors on the market, OKdo, in collaboration with Radxa, ensured long-term stock availability of ROCK 4 SE, sparing you from stock hunting and allowing you to focus on designing the world with breathtaking innovations.āÆ
Technical Specifications
| ROCK 4 SE Board | |
| SOC | Rockchip RK3399-T |
| Processor | Arm® big.LITTLE™ technology (Dual Cortex®-A72@1.5GHz, Quad Cortex-A53@1.0GHz) |
| GPU | Arm Mali™ – T860MP4 GPU, supporting OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11 |
| Memory | Dual channel (64bit) 4GB LPDDR4 RAM |
| Power Req | USB Type-C™ PD/QC 9-12V |
| HDMI | 1 x 4k@60fps HDMI |
| USB | 2 x USB 2.0 1 x USB 3.0, 1 x USB 3.0 OTG (Switchable) |
| Audio Ports | 3.5mm jack, analogue stereo output, microphone input |
| Connectivity | WiFi 5/BT 5.0, BLE, Gigabit Ethernet |
| MIPI | 1 x 2 lane DSI/1 x 2 lane CSI |
| Storage | Micro SD / M.2 (M key) / eMMC |
| EMMC | B2B connector |
| UARTS | 2 x UART |
| RTC | YES (support for external battery) |
| Software | ARMv8 Instruction Set
Debian/Ubuntu Linux support Android 7.1/Android 9.0/Android 10/Android 11 support GPU-enabled AI stack such as Caffe Hardware access/control library for Linux/Android |
| Temperature | Operation Temperature: 0~50 ā/ Storage Temperature: -20~80 ā |
Key product features of ROCK 4 SE
Pinout Diagram of the ROCK 4 SE
Specifications
| SKU |
NS8889316 |
|---|---|
| mpn |
ROCK 4B SE 4GB |
| brand |
Radxa |
