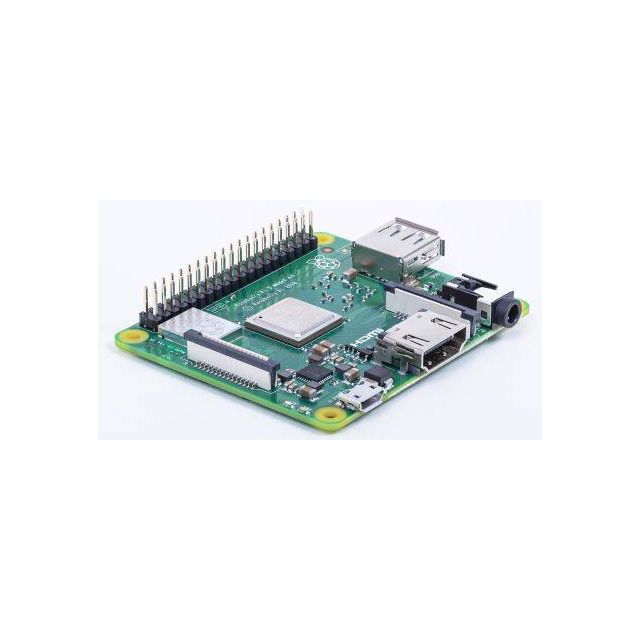

Raspberry Pi 3 model A+
- Dit computer board van Raspberry Pi is te vergelijken met RPI3B+ maar met de footprint van RPIA+. Het grote verschil tussen de 2 borden is de capaciteit van het geheugen. 3A+ heeft 512MB t.o.v. 1GB voor de 3B+. Verder heeft 3A+ geen ethernet connectie.
- De afmetingen zijn compacter wat het ideaal maakt voor integratie in compacte designs.
| Referentie | RPI3A+ |
|---|---|
| EAN code | 02084398968157 |
| Extra | |
| Merk | RASPBERRY PI |
| Promotie geldig tot | 2 dec. 2024 |
| Data sheet | RPI3A+.pdf |
| Zolang de voorraad strekt | Nee |
| Soort | RPI3 |
Specifications
The Raspberry Pi 3 Model A+ extends the Raspberry Pi 3 range into the A+ board format.
- Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
- 512MB LPDDR2 SDRAM
- 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
- Extended 40-pin GPIO header
- Full-size HDMI
- Single USB 2.0 ports
- CSI camera port for connecting a Raspberry Pi Camera
- DSI display port for connecting a Raspberry Pi Touch Display
- 4-pole stereo output and composite video port
- Micro SD port for loading your operating system and storing data
- 5V/2.5A DC power input
Software & OS
Software installation
Raspberry Pi OS is the recommended operating system for normal use on a Raspberry Pi.
Raspberry Pi Imager is the quick and easy way to install Raspberry Pi OS and other operating systems to a microSD card, ready to use with your Raspberry Pi.
Find help with installing Raspberry Pi OS on your Pi in our online Getting started guide.
You can browse basic examples to help you get started with some of the software available in Raspberry Pi OS, find more detail about Raspberry Pi OS, or read information on fundamental Linux usage and commands for navigating the Raspberry Pi and managing its file system and users.
Compliance
The Raspberry Pi 3 Model A+ has undergone extensive compliance testing, and meets the following European standards:
- Electromagnetic Compatibility Directive (EMC) 2014/30/EU
- Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
View and download global compliance certificates for Raspberry Pi products.
The dual-band wireless LAN comes with modular compliance certification. This allows the board to be designed into end product with significantly reduced wireless LAN compliance testing, improving both cost and time to market.
The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
